Motor configuration properties
| Rotational speed | 348 rpm |
|---|---|
| Torque | 44Ncm |
| Power | 16 w |
| Supply Voltage | 3~400 V |
| Frequency | 50Hz |
| Total current | 55mA |
| Input power | 38 w |
| Capacitor | – |
| Coil overtemperature | 20°C |
| Rotational speed solo motor | 1500 rpm |
| Torque solo motor | 13Ncm |
| Gear | Planetary gearbox type R |
| Gear ratio | 4.3:1 |
| Gear efficiency | 0.8 |
| Permissible output torque | 8Nm |
| allowable peak torque | 12Nm |
| Output shaft diameter | 14mm h7 |
| Max. axial load | 70 N |
| Max. radial load | 240 N |
| Overall length without integrated electronics | 122mm |
| Overall length with integrated electronics | 166mm |
| Gear type | Planetary Gear |
| electronics | Standard without control electronics. |
Engine configuration properties

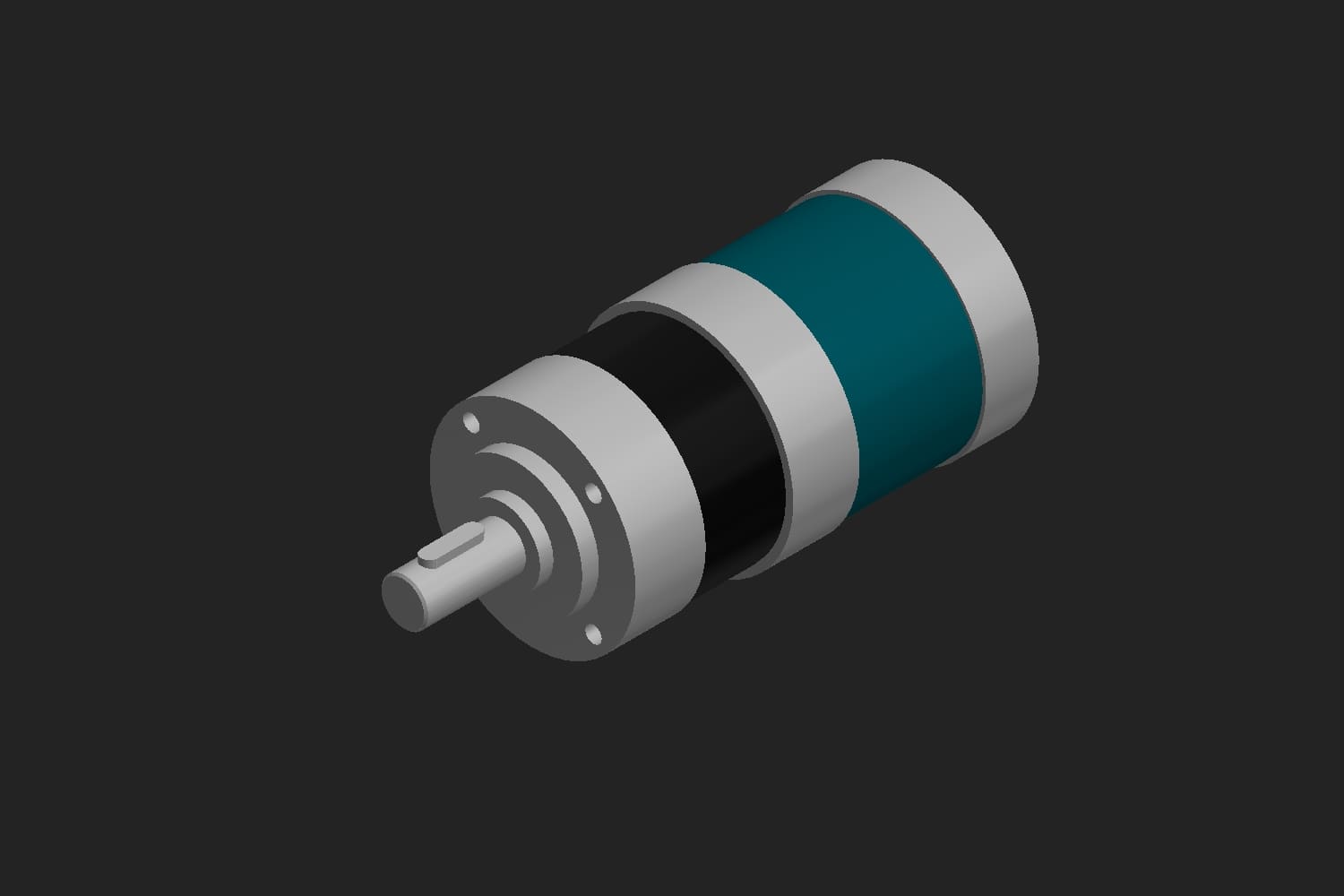

ROSLYDE 44.4-R4.3
| Rotational speed | 348 rpm |
|---|---|
| Torque | 44Ncm |
| Power | 16 w |
| Supply Voltage | 3~400 V |
| Frequency | 50Hz |
| Total current | 55mA |
| Input power | 38 w |
| Capacitor | – |
| Coil overtemperature | 20°C |
| Rotational speed solo motor | 1500 rpm |
| Torque solo motor | 13Ncm |
| Gear | Planetary gearbox type R |
| Gear ratio | 4.3:1 |
| Gear efficiency | 0.8 |
| Permissible output torque | 8Nm |
| allowable peak torque | 12Nm |
| Output shaft diameter | 14mm h7 |
| Max. axial load | 70 N |
| Max. radial load | 240 N |
| Overall length without integrated electronics | 122mm |
| Overall length with integrated electronics | 166mm |
| Gear type | Planetary Gear |
| electronics | Standard without control electronics. |
Download 3D model
The offered CAD model is a standard configuration. On request we will find individual solutions for your application.
Print data sheet
You can print out the motor configuration data by clicking the button below.
